Solmetex® NXT Hg5® Series


The NXT Hg5 is the next generation in Amalgam Separation and the gold standard. Our products meet or exceed all state and federal requirements for the safe removal of mercury in the dental office. Our signature product – the NXT Hg5 comes in several sizes to fit your practice set up.

Hg5 Amalgam Separator

NXT Hg5

most popular

Learn more

NXT Hg5 mini

small office

Learn more

Hg5HV

high volume

Learn more

Recycling Kit

easy disposal solution

Learn more

The proven answer to your amalgam separation concerns.

CLEARLY the Market Leader

Solmetex provides the complete solution:

  • ISO 11143:2008 certified by NSF International
  • Professionally engineered, robust, simple design.
  • Easy to operate and maintenance free.
  • Flexible design for hard-to-fit applications.
  • Functional for wet or dry vacuum systems

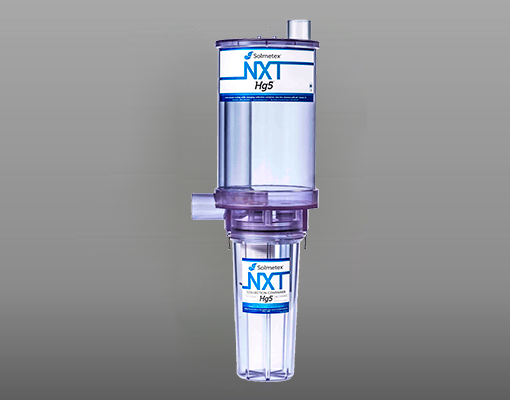

NXT Hg5 Amalgam Separator

  • Accommodates up to 10 operatories.
  • Dimensions 30”h x 11”w x 8”d.
  • 1 1/2” inlet and outlet piping.
  • Fernco couplers for easy install.
  • Floor/wall mount brackets provided.

Description and Part Number

  • NXT Hg5® Amalgam Separator (NXT-HG5-001)
  • NXT Hg5® Collection Container with Recycle Kit (NXT-HG5-002CR)

Support Data

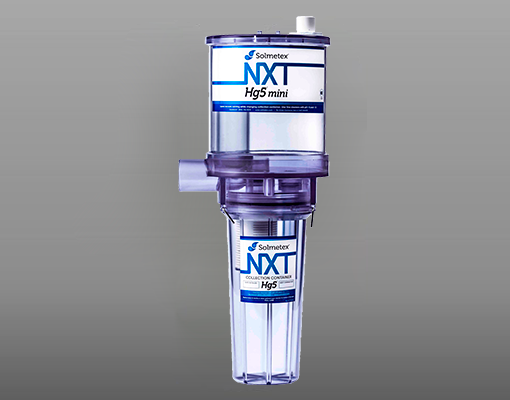

NXT Hg5 mini

  • Accommodates up to 4 operatories.
  • Dimensions 25″h x 11″w x 8″d.
  • 3/4″ inlet and outlet piping.
  • Fernco couplers for easy install.
  • Floor/wall mount brackets provided.
  • Designed specifically to fit under a counter.

Description and Part Number

  • NXT Hg5® mini Amalgam Separator (NXT-HG5-MINI)
  • NXT Hg5® Collection Container with Recycle Kit (NXT-HG5-002CR)

Support Data

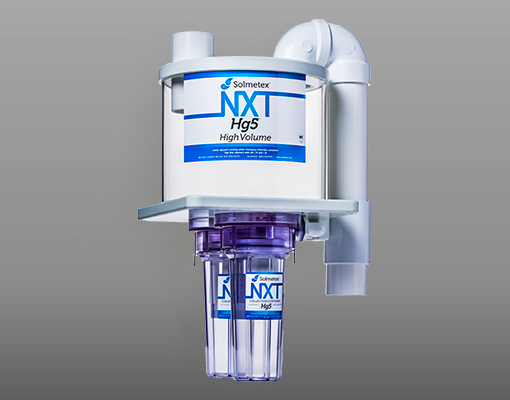

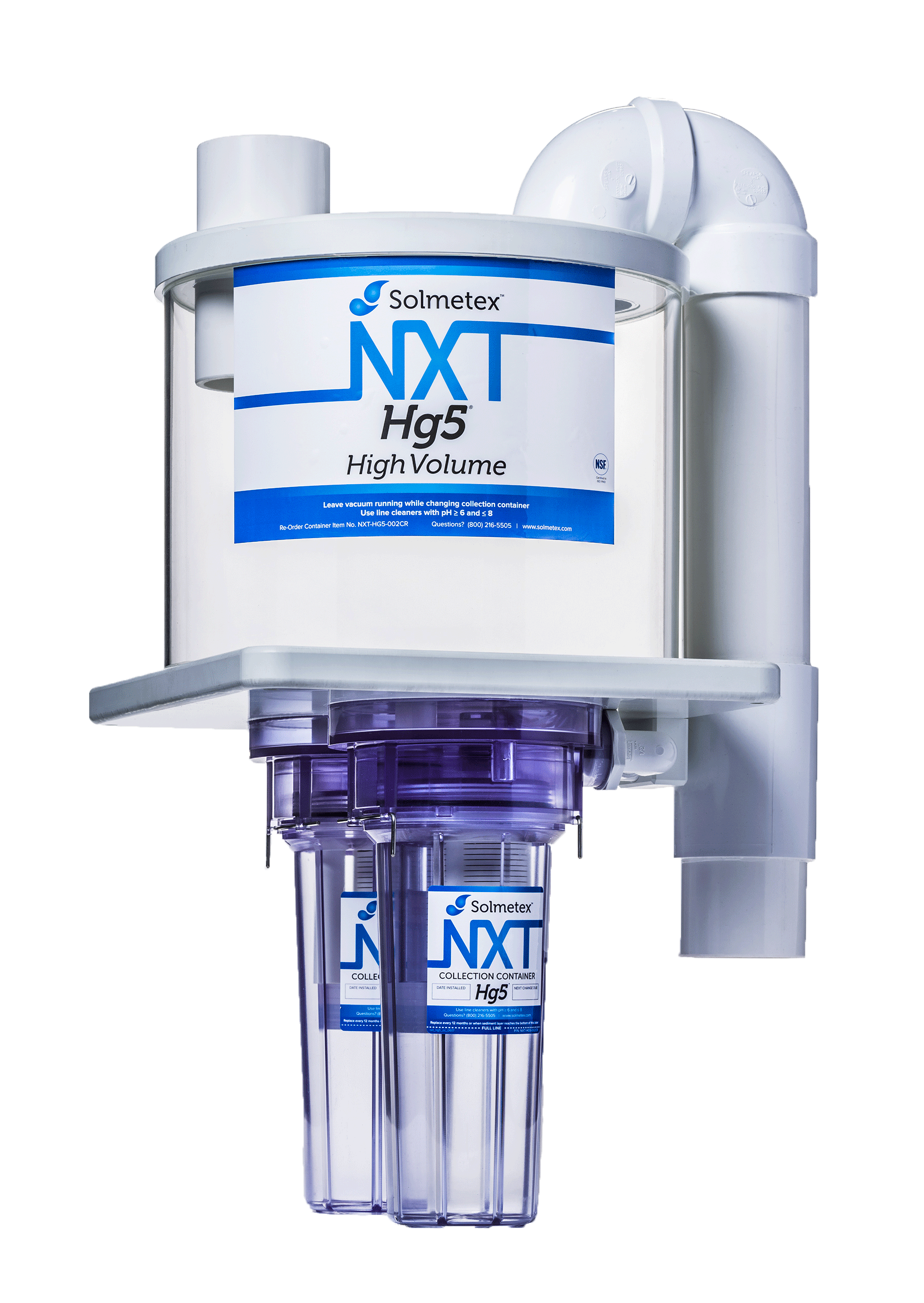

Hg5 High Volume

  • Accommodates up to 20 operatories
  • Dimensions 28″h x 18″w x 22 1/2″d
  • 3″ inlet and outlet piping
  • Wall mount brackets provided

Description and Part Number

  • Hg5® High Volume Amalgam Separator (Hg5HV-001)
  • Collection Container with Recycle Kit (Hg5-002CR)

Support Data

Hg5 Series of Collection Containers with Recycle Kits

 Once you are set up with one of our award winning Hg5 series of amalgam separators that fits the size of of your practice, in time, you will need to swap out the collection container located at the bottom of the amalgam separator for recycling.  The frequency with which you change the collection container depends upon the size and volume of your practice, the container will need to be replaced once the sediment reaches the full line or once a year (whichever comes first). The good news is, we do all of the hard work and dispose of the mercury under federal guidelines for you. All you have to do is disconnect the old collection container and ship it in the provided reecyling kit box to our recycling facility. Simply insert the new collection container,  and you’re ready to go. Keeping harmful mercury out of the environment has never been easier.

  • NXT Hg5, Hg5 [Legacy] or RAMVAC Utility Collection Container
  • Solmetex box for shipping & recycling
  • Shipping label
  • Recycling documentation

Support Data

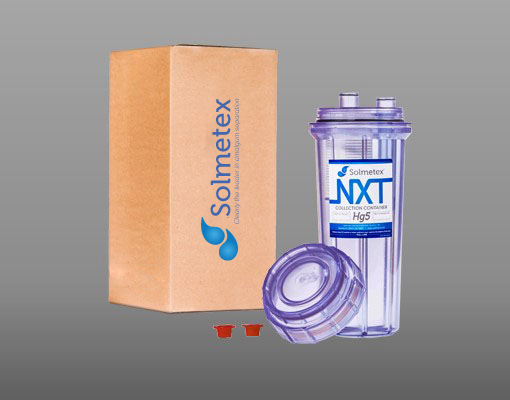

NXT Hg5 Collection Container with Recycle Kit
Compatible with the NXT Hg5 Amalgam Separator
Item #NXT-HG5-002CR



Hg5 [Legacy] Collection Container with Recycle Kit
Compatible with the Hg5 Amalgam Separator
Item #HG5-002CR

.

RAMVAC Utility Collection Container with Recycle Kit
Compatible with the RAMVAC Utility HG5 Amalgam Separator
Item #HG5-CR-RVC
